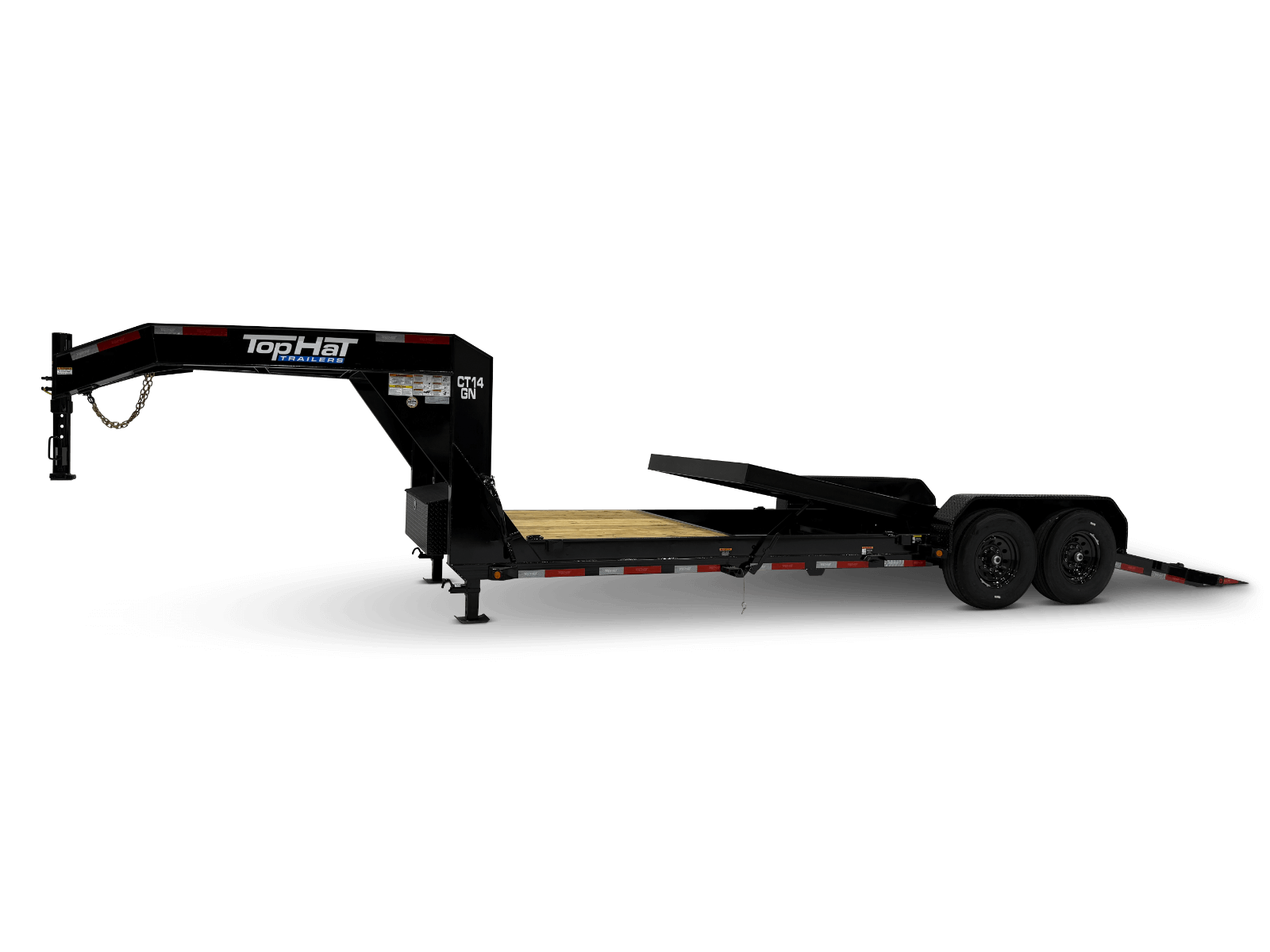

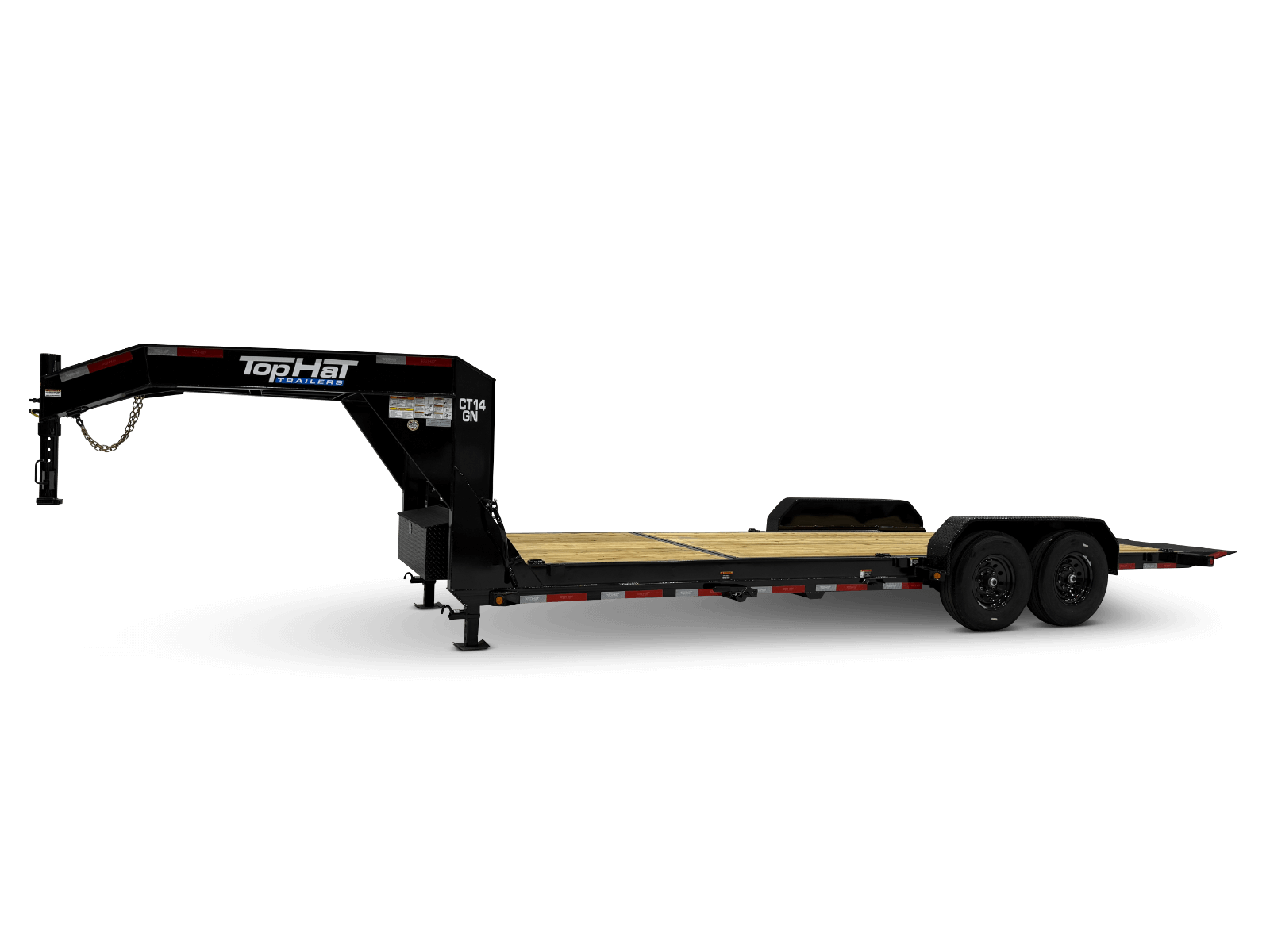

Cushion Tilt Bed Gooseneck 14k–16k

Product Details

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole on 14K
• ST215/75R/17.5 LRH Tires on 8-Hole on 16K
• 7000# Dexter Electric Brake 4" Drop 1/2 Cambered w/EZ Lub Hubs
• 8000# Dexter Oil Bath 4" Drop 1/2 Cambered Axles w/5/8" Lug Studs
• 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
• 10000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Stake Pockets
• Spare Rack
• Flush Floor
• Inverted Treadplate Dovetail
• Hydraulic Cushioning System w/Control Valve
• Sealed Flush Mount LED Lights
• Wiring Harness
• Color: Stock
• Note: 20' Trailer has 4' Stationary Deck w/16' Tilting Deck
• Note: 22' Trailer has 4' Stationary Deck w/18' Tilting Deck
• Note: 24' Trailer has 6' Stationary Deck w/18' Tilting Deck
• Not Recommended For Heavy Loads On Rear Of Trailer.
• Load Should Not Exceed 2' Behind Rear Axle.

Frame Structure

• Frame: 6" Channel on 14K
• Frame: 8" Channel on 16K
• Tongue: 6" Channel
• Deck Frame: 6" Channel on 14K
• Deck Frame: 8" Channel on 16K
• Crossmembers: 3" Channel

Options

• Weld-on D-Rings 5/8" (Each)
• Spare ST235/80R/16 LRE on 8-Hole
• Spare ST215/75R/17.5 LRH on 8-Hole Black Mod
• Winch Plate
• Cable Roller (Mounts on tilt deck. Required w/winch plate on models w/stationary deck)
