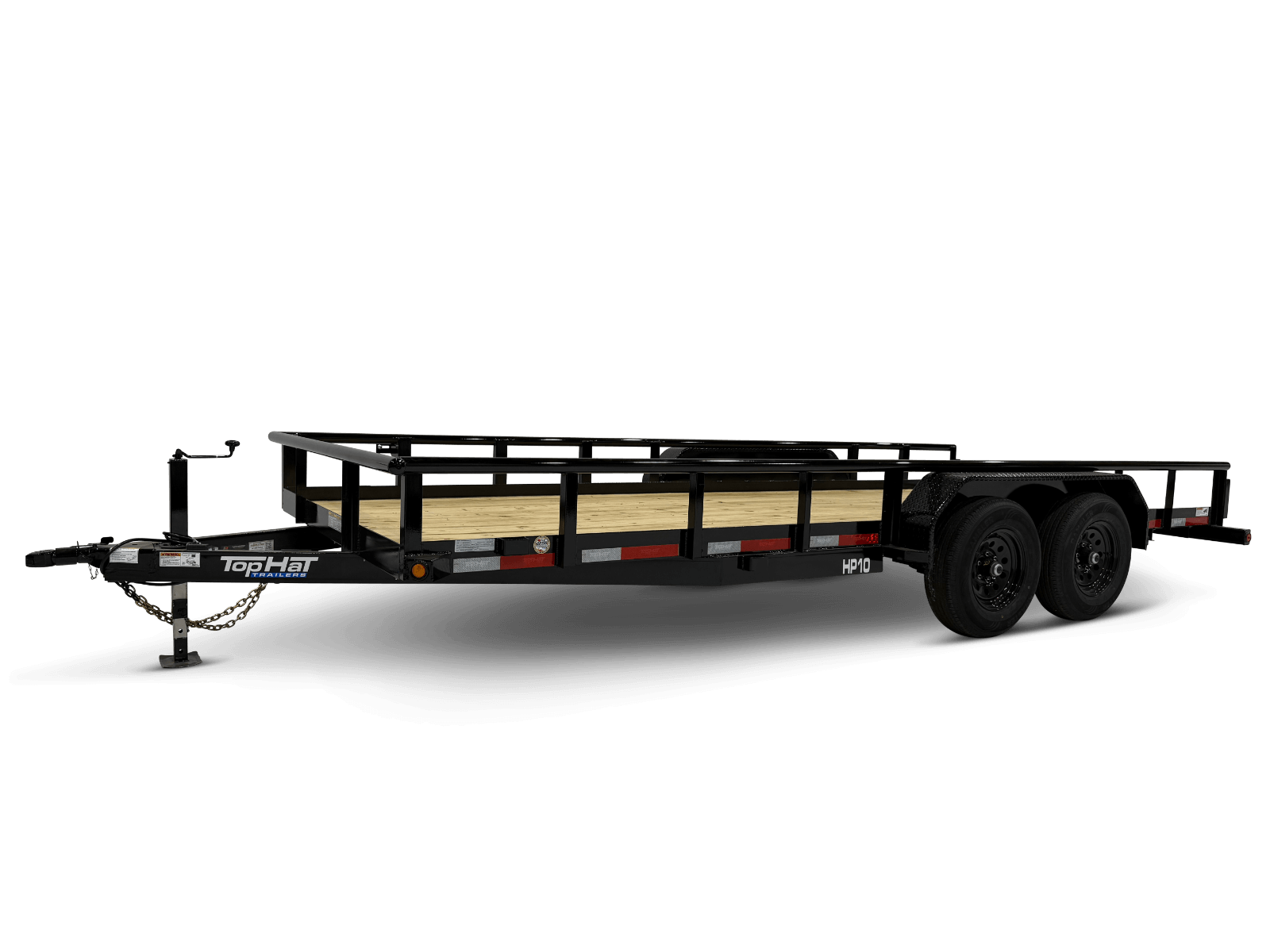

Heavy Pipe 10k

Product Details

Standard Equipment

• ST225/75R/15 LRE Tires on 6-Hole
• 2-5200# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" Forged A-Frame Coupler
• 7000# Set Back Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Suspension: Double Eye Spring
• Stake Pockets
• Square Back w/Board Bracket
• Spare Rack
• Flush Mount Sealed LED Lights in Rear Tailboard
• Color: Stock

Frame Structure

• Frame: 5x3x1/4 Thru 20'
• Frame: 5" Channel 22-24' w/Flush Floor
• Toprail: 2 3/8" Pipe
• Crossmembers: 3" Channel
• Tongue: 5" Channel Wrap
• Uprights: 3x2x3/16

Options

• 10000# Drop Leg Jack
• Spare ST225/75R/15 LRE on 6-Hole
• Upgrade to 235/80R/16 LRE Tire
• Spare ST235/80R/16 LRE on 6-Hole
• Gooseneck w/10" Neck & Risers
• 3" Pipe Toprail

Ramps/ Tailgates

• 5' Slide-N Channel Ramps
• 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
• 4' HD Tailgate w/Coil Spring Assist
• Split HD Tailgate (Available on HD Only)
• Tractor Rampgate (Split) w/ Adjustable Knees & Coil Spring Assist Each Gate
• 2' Diamond Plate Dovetail (No Tailgate)

Model Table
