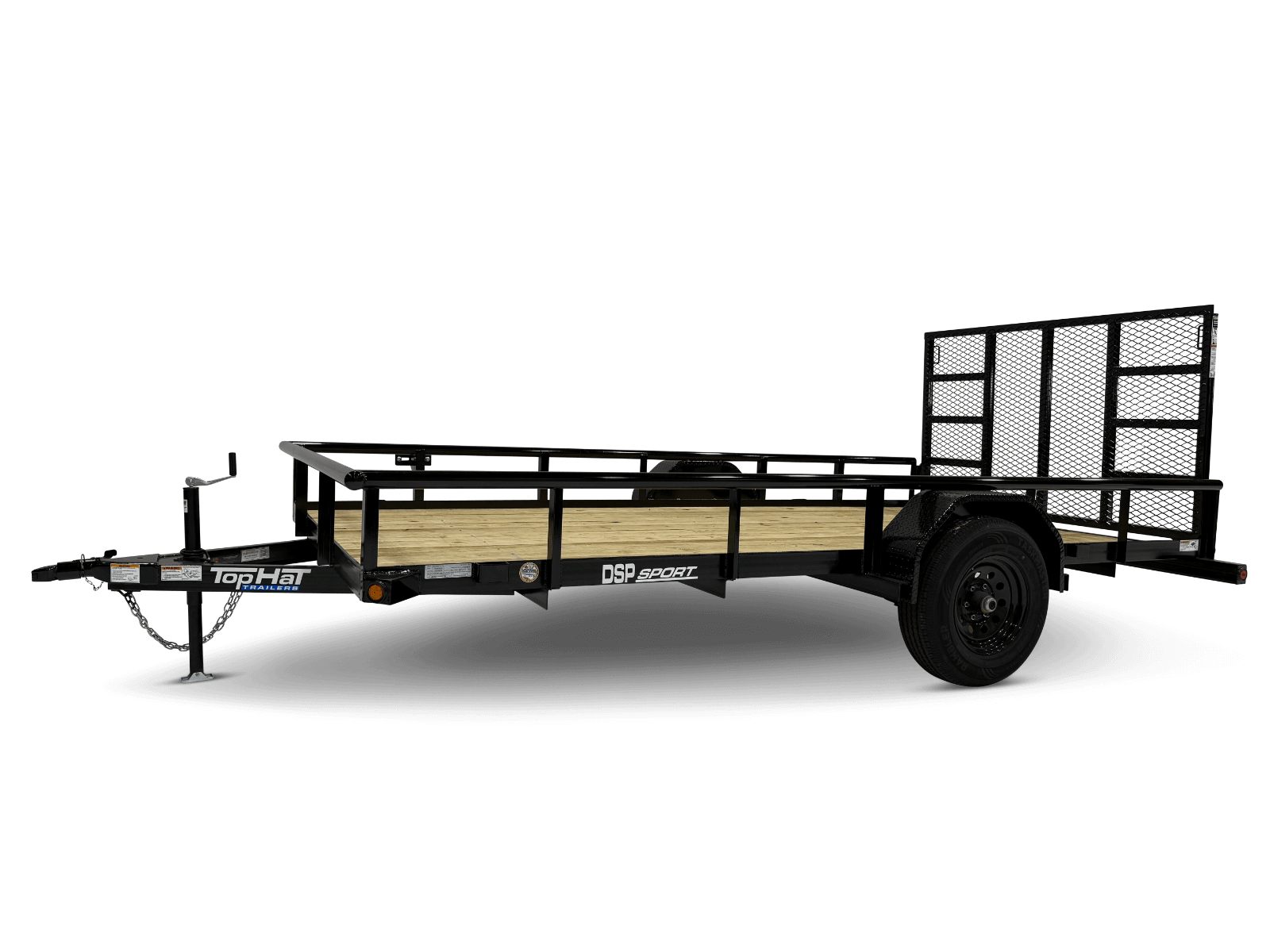

Derby Sr Pipe Sport

Trailers - Trailers Single Axle / ATV-UTV / Landscaper

Print

Derby Sr Pipe Sport

Trailers Single Axle / ATV-UTV / Landscaper

Brand: Top Hat
Inventory Status: Manufacturer Inventory or Available to Order

Request More Info

Product Details

Model	Axle Description	Tire Size	GAWR	GVWR
DERBY SR PIPE SPORT
8x60" DSP.SP	5200# Dexter	ST225/75/R LRE Radial	2990#	2990#
10x60" DSP.SP			5000# w/Brake Option	5000# w/Brake Option
12x60" DSP.SP
14x60" DSP.SP
10x77" DSP.SP
12x77" DSP.SP
14x77" DSP.SP
10x83" DSP.SP
12x83" DSP.SP
14x83" DSP.SP

Standard Equipment

ST225/75R/15 LRE Tires
5200# Dexter EZ-Lube Idler Axle
2" Forged A-Frame Coupler
2000# Set Back Jack
HD Diamond Plate Fender (Double Broke)
Treated Pine Floor
Stake Pockets
Spare Rack
Flush Mount Sealed LED Lights in Rear Tailboard
Color: Stock

Frame Structure

Frame: 4x3x1/4
Toprail: 2 3/8" Pipe
Crossmembers: 3x2x3/16
Tongue: 4" Channel
Uprights: 2x2x1/8
TG Uprights: 2" Sq Tube 14GA
TG Horizontal Rungs: 3 Each Side 77-83 Only
4' Lay-N-Tailgate w/Coil Spring Assist

Options

3x2 Angle Toprail (May be required w/certain custom applications)
SA-5200# Electric Brake & Break Away Kit
Wrap Tongue
Fold Up Jack
7000# Drop Leg Jack
Spare ST225/75R/15 LRE on 6-Hole
Upgrade to 235/80R/16 LRE on 6 Hole
Spare ST235/80R/16 LRE on 6-Hole

Slide-N-Ramps

4' Slide-n-Ramps ILO Tailgate (Available on 77"-83" wide only)

Tailgate Options

Sidegate 48" Tall x 50" Wide (No Spring Assist). (NA on 8-10') Requires Wrap Tongue

Diamond Plate Dovetail w/Tailgate

2' TG w/2' Dove w/Coil Spring Assist ILO 4' Lay-N TG
3' TG w/2' Dove w/Coil Spring Assist ILO 4' Lay-N TG
Delete TG 60"
Delete TG 77-83"

MORE CUSTOM OPTIONS AVAILABLE
