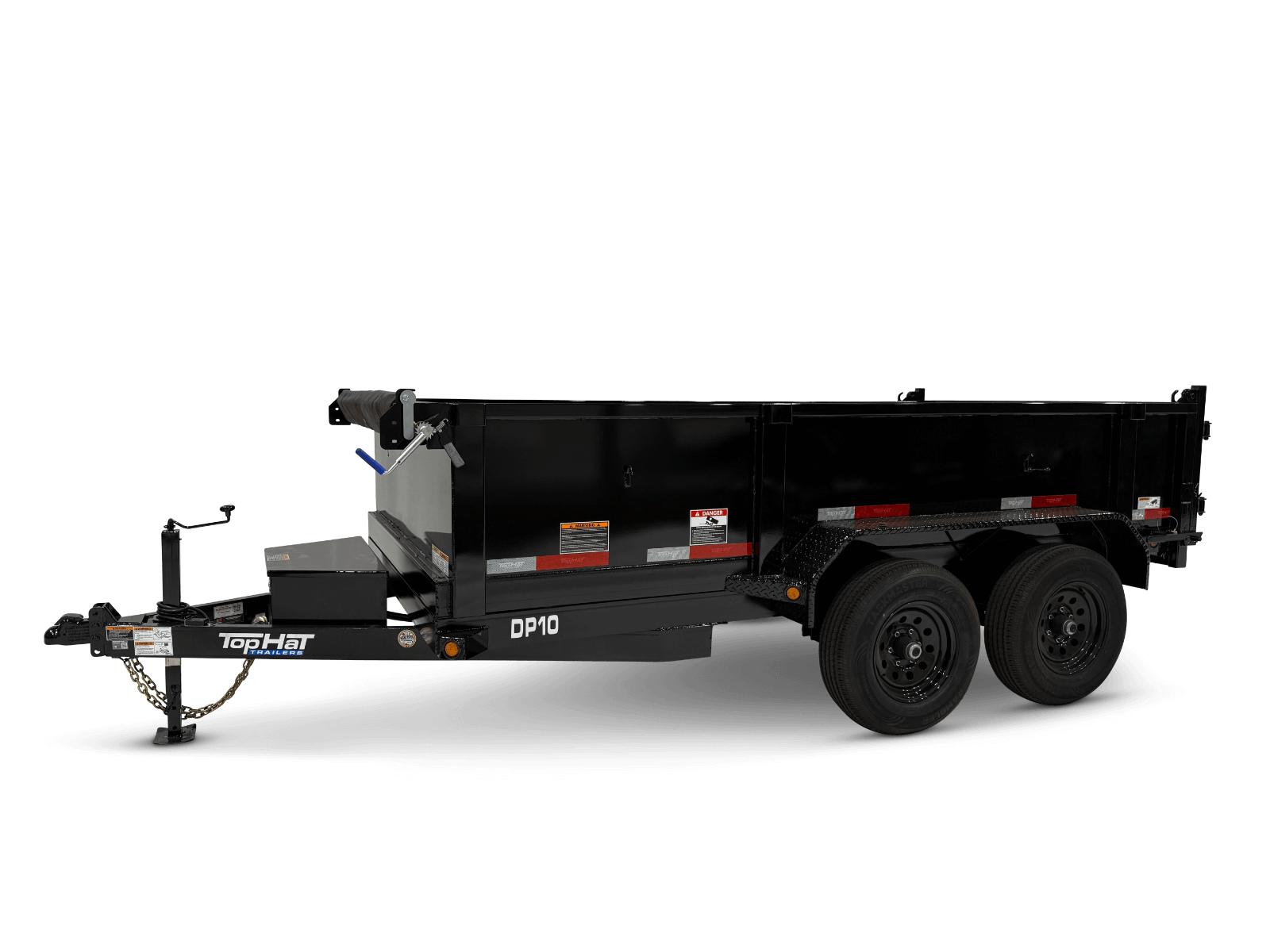

Medium Duty Dump 10k

Product Details

• ST225/75R/15 LRE Tires on 6-Hole
• 5200# Dexter EZ-Lube 1/2 Cambered Axles
• Electric Brake on 2-Axles
• 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
• 7000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Width: 77" Inside Box
• Break Away Unit w/Charger
• Primed & Painted Underside
• Dual Action Swing Out Doors/1 Piece Spreader Gate
• Spare Rack
• Sealed Flush Mount LED Lights
• Wiring Harness
• Lockable Battery/Pump Box
• Slide-N Ramp 5' Channel
• 5/8" D-Rings in Box (4)
• Crank Style Roll Tarp & Tie Downs
• Color: Black

Frame Structure

• Frame: 5" Channel
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Floor: 10 GA Sheet Metal
• Tongue: 5" Channel Wrap
• Toprail: 2x2 Sq Tubing
• Uprights: 24" OC
• Dump Body Frame: 5x3x1/4 Angle
• Crossmembers: 3" Channel 16" OC

Options

• Spare ST225/75R/15 LRE on 6-Hole
• 235/80R/16 LRE Tire Upgrade
• Gas Engine Powered Pump in Lieu of Electric Pump
• Hydraulic 7K Jack
• Solar Battery Charger

Dump Components

• 416 Scissor Hoist
• Power Up/Power Down/Gravity Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
• Caulked Seams on Dump Body
• Deep Cycle 12V Marine Battery
• 110 Volt-5 Amp Charger
