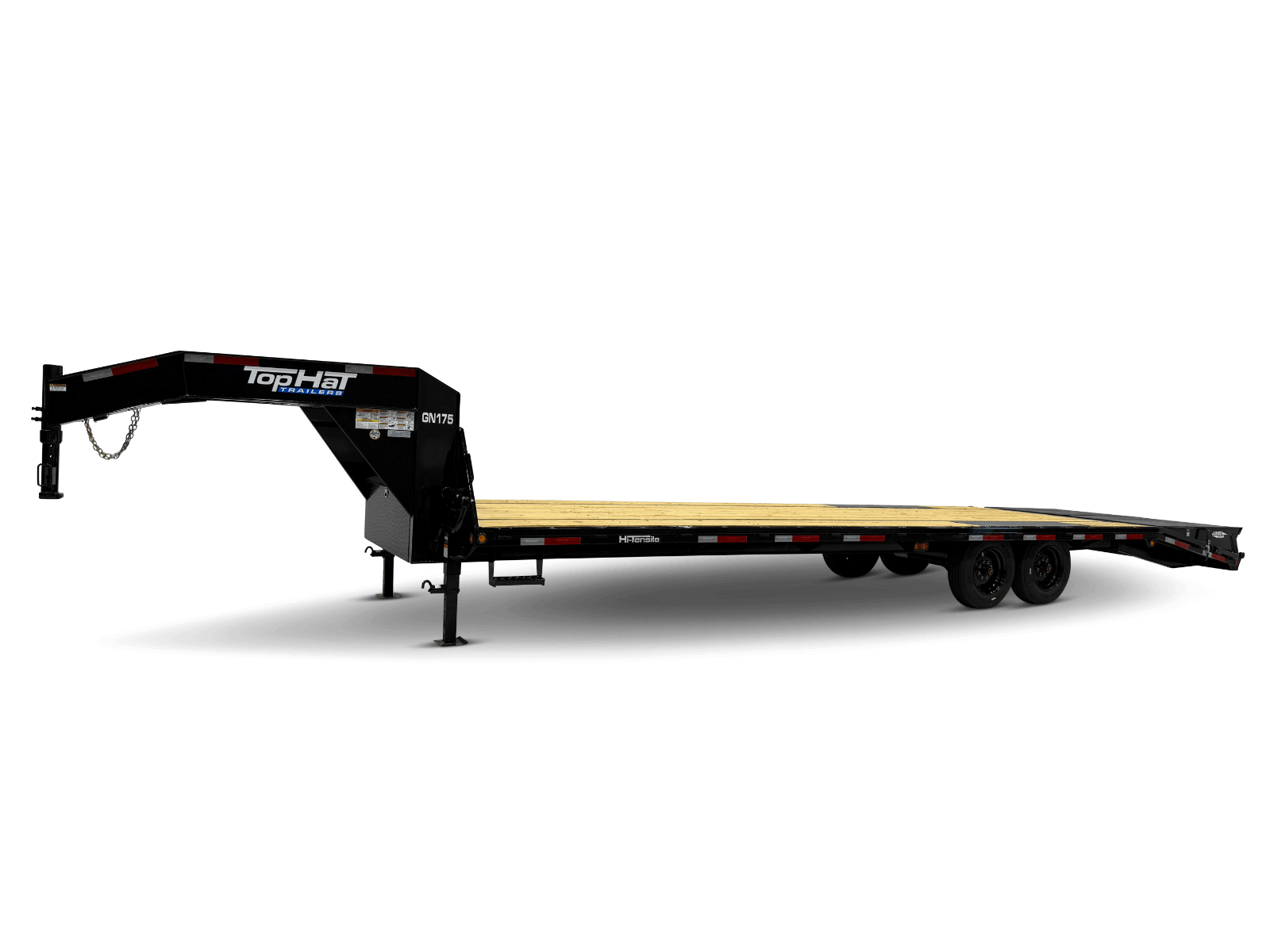

Gooseneck Lo Profile Flatbed 16k

Product Details

Standard Equipment

• ST215/75R/17.5 LRH Tires on 8-Hole
• 2-8000# Dexter Oil Bath Electric Brake Axles
• 2 1/4" Brake Pads
• 2 5/16" Round Adjustable Coupler
• Dual 10000# Drop Leg Jacks
• Treated Pine Floor
• Break Away Unit w/Charger
• Spare Tire Rack Inside Neck (Spare Tire Optional)
• Lockable Toolbox Between Risers
• Winch Plate Between Risers
• Wiring Harness w/Sealed LED Lights
• Driver & Curb Side Steps w/Grab Handles
• DOT Reflective Tape
• Color: Black

Frame Structure

• Frame: 12"x14# I-Beam, 16# on 32' & Longer
• Neck: 12"x14# I-Beam
• Crossmembers: 3" Channel 16" OC Thru Frame
• Side Rails: 5" Channel
• 3/8x2 Flat Rubrail
• Stake Pockets 24" OC
• Pipe Spools Between Each Stake Pocket
• Frame to Crossmember Gussets
• Anti Flex Torx Tube on 32' & Longer
• Low Profile (Crossmembers Thru Frame)
• Dovetail w/Fold Over Spring Assist Ramps on +5 Models
• Deck Height: 33"

Options

• Dual 2-Speed Jacks
• Jumbo Ramps
• 7 1/2' Slide-n-Channel Ramps (Straight Deck Only)
• Spare ST215/75R/17.5 LRH on 8-Hole
• Deck Over Neck (8'x8')
• 1" D-Rings (Per Ring)
• Toolbox 15"x15"x36" JI
• Sliding Winch Ratchet Track (Per Foot)
• Winch Ratchets w/Straps (Please specify Sliding or Weld On)

Model Table
