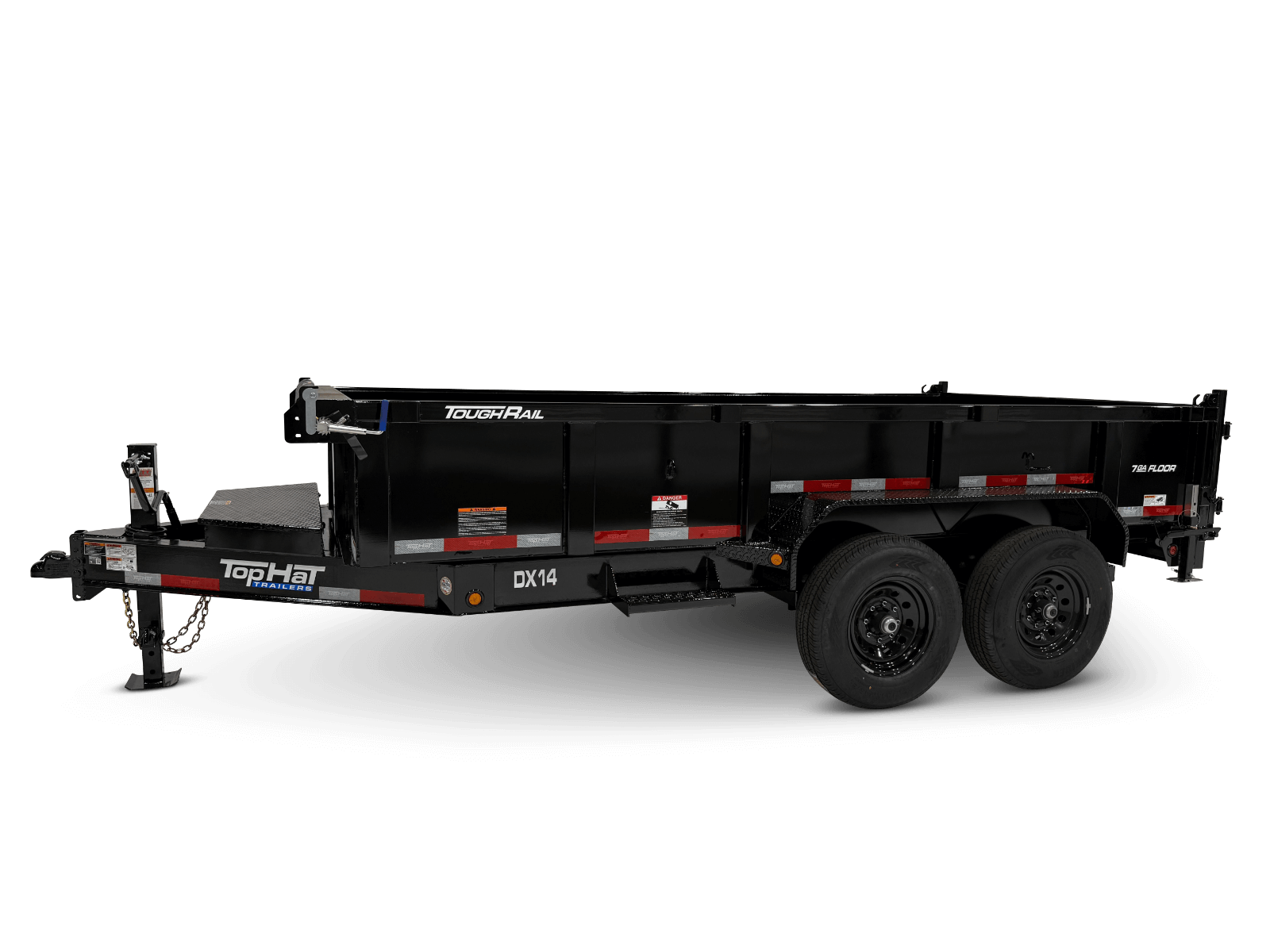

Low Profile Dump 14k

Product Details

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole
• 2-7000# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
• 10000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Width: 83" Inside Box
• Break Away Unit w/Charger
• DOT Reflective Tape
• Primed & Painted Underside
• Dual Action Swing Out Doors/1 Piece Spreader Gate
• Slide-N Ramp 6' Channel
• 5/8" D-Rings in Box (4)
• Spare Rack
• Sealed Flush Mount LED Lights
• Side Step (Driver Side)
• Wiring Harness
• Lockable Battery/Pump Box
• Crank Style Roll Tarp & Tie Downs
• Rear Stabalizer Stands
• Color: Black

Frame Structure

• Frame & Tongue: 8" I-Beam Integrated
• Tongue: 8" I-Beam Integrated w/Frame
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Floor: 7 GA Sheet Metal
• Toprail: Rigid 3x2x7GA Rectangular Tubing
• Uprights: Formed Channel
• Dump Body Frame: 6" Channel
• Crossmembers: 3" Channel 16" OC

Options

• DX Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
• Ground Level Crank Kit For Spring Loaded Long Arm Retractable Tarp (3-4' Sides Only)
• Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
• Gas Engine Powered Pump in Lieu of Electric Pump
• Spare ST235/80R/16 LRE on 8-Hole
• Hydraulic 12K Jack Replacing Single 10K Jack
• Telescopic Hoist ILO Scissor Hoist
• Solar Battery Charger
• Jumbo Step (40" Replaces 18" Side Step)

Dump Components

• 516 Scissor Hoist on 12'
• 520 Scissor Hoist 0n 14'-16'
• Power Up/Power Down/Gravity Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
• Caulked Seams on Dump Body
• Deep Cycle 12V Marine Battery
• 110 Volt-5 Amp Charger

High Sides

• 3' Tall Sheet Metal Sides
• 4' Tall Sheet Metal Sides
