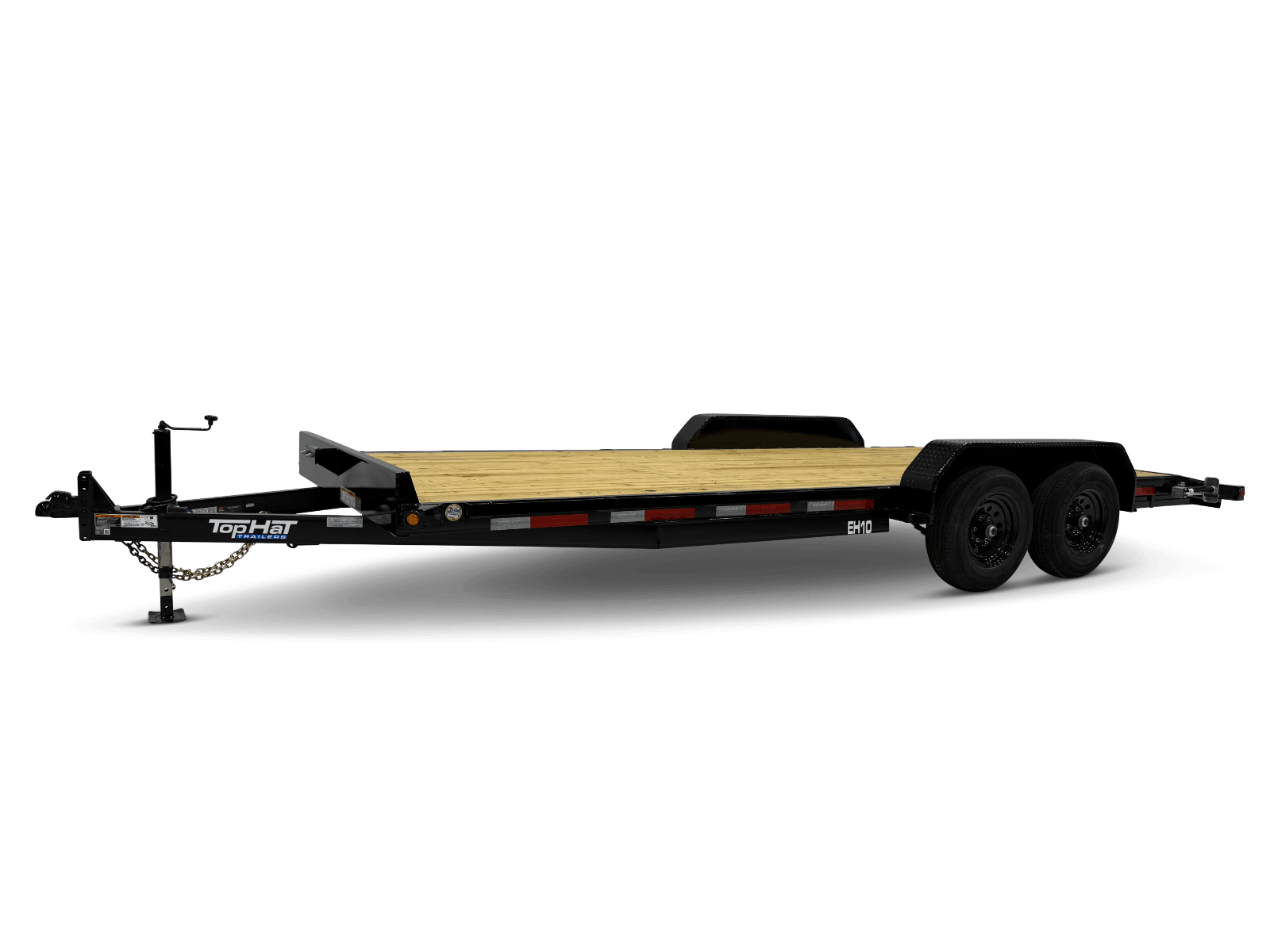

Equipment Hauler 10k

Product Details

Standard Equipment

• ST225/75R/15 LRE Tires on 6-Hole
• 2-5200# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
• 7000# Set Back Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Suspension: Double Eye
• DOT Reflective Tape
• Sealed Flush Mount LED Lights w/Wiring Harness
• Spare Rack
• Color: Stock

Frame Structure

• Frame: 5" Channel Thru 20'
• Frame: 6" Channel on 22-24'
• Front Bumper w/Side Gussets
• Crossmembers: 3" Channel 24" OC
• Tongue: 5" Channel Wrap
• Stake Pockets w/3/8x2 Rubrail
• 5/8" D-Rings (6)
• 2' Treadplate Dovetail
• Flush Floor

Options

• 10000# Drop Leg Jack
• Spare ST225/75R/15 LRE on 6-Hole
• HD 3/16" Drive Over Fenders
• Weld-on D-Rings 5/8" (Each)
• Rub Rail w/Stake Pockets (Per Linear FT)
• 3" Square Tube Toprail (Side Option)
• Gooseneck (10" I-Beam Risers/Neck )
• Fork Rack (2-6" Channel tubes set at 46" Outside. Driver side)
• Fork Rack Tubing & dimensions can be customized w/additional fee.
• *5' Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
• Rear Stabalizer Jack (5K Top Wind Pipe Mount)
• 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
• **3' Self Cleaning Cleated Dovetail & 3' Mini Jumbo Spring Assist Ramps (Must be 20' or longer)
• 5' XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
• Above Ramp is 24" Wide Covered w/Expanded Metal
• 3-4' Dovetail ILO 2' Dovetail
• 2' Self Cleaning Cleated Dovetail ILO 2' Treadplate Dovetail
• *Rear Slide-N Ramps on 16' will be 4 1/2'. Rear Slides NA on 12-14'.
• **Jumbo Ramps NA on lengths less than 20'
