Single Axle Mini Dump 5k

Trailers - Trailers Hydraulic Dump / Roll Off

Print

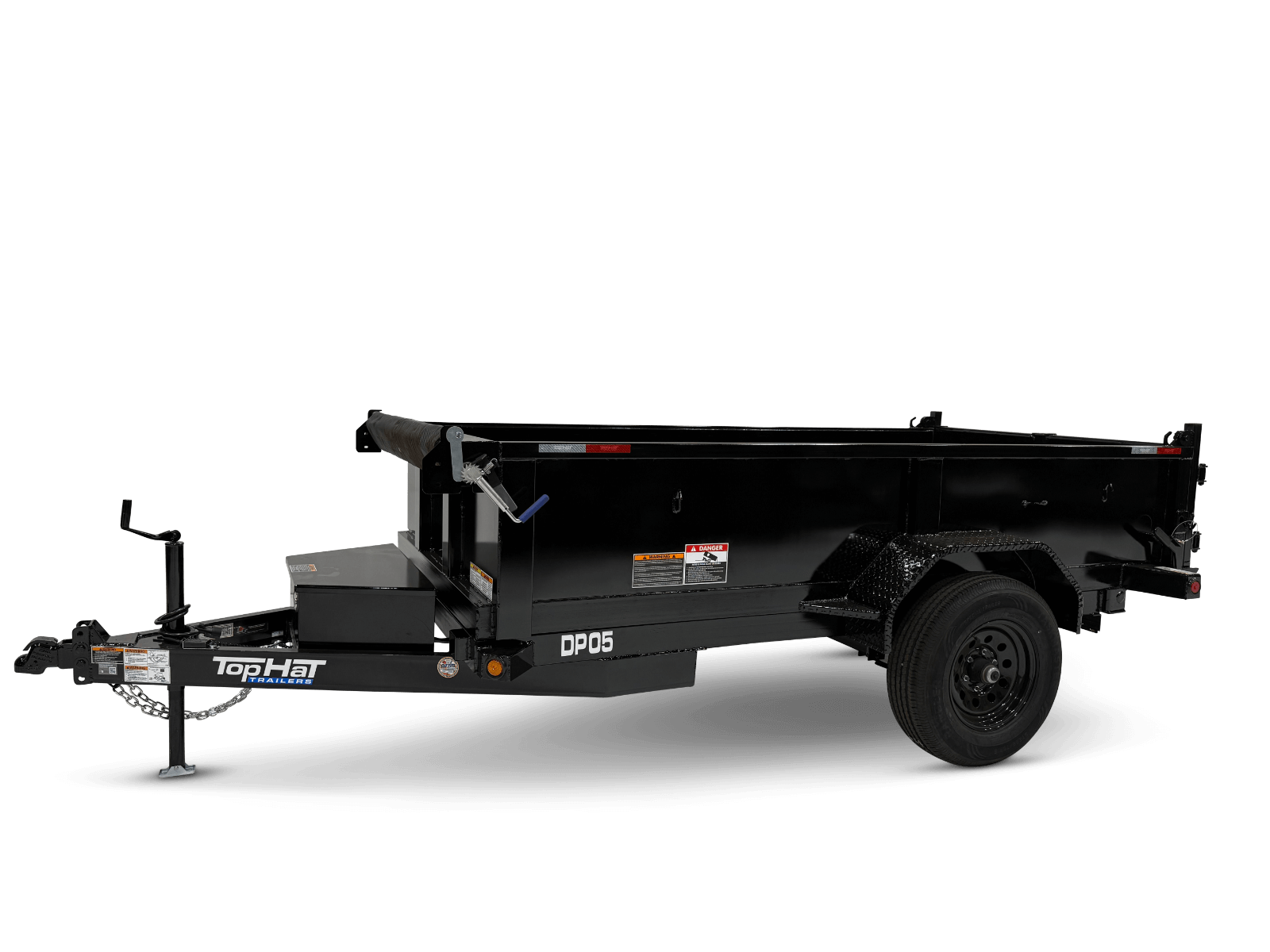

Single Axle Mini Dump 5k

Trailers Hydraulic Dump / Roll Off

Brand: Top Hat
Inventory Status: Manufacturer Inventory or Available to Order

Request More Info

Product Details

Model	Axle Description	Tire Size	GAWR	GVWR
DUMP 50 (Single Axle)
10x60 DP05	1 - 5200# Dexter	ST225/75R/15 LRD	5000#	5000#
	Electric Brake Nev-R-Adjust
	E-Z Lube - 1/2 Cambered

Standard Equipment

ST 225/75R/15 LRE Tires on 6-Hole
1-5200# Dexter EZ-Lube 1/2 Cambered Electric Brake Axle
2" DEMCO Easy Latch Adjustable 5/Position Coupler
2000# Jack
HD Diamond Plate Fender (14ga.Double Broke Single Axle)
Width: 60" Inside Box
Break Away Unit w/Charger
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Color: Black

Options

Spare ST225/75R/15 LRE on 6-Hole
Solar Battery Charger

Frame Structure

Frame: 4" Channel
Sides: 20" Formed
Floor: Sheet Metal
Tongue: 5" Channel Wrap
Dump Body Frame: 4" Channel
Crossmembers: 3" Channel 24" OC

Dump Components

3"x24" Cylinder Direct Push Hoist
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger
