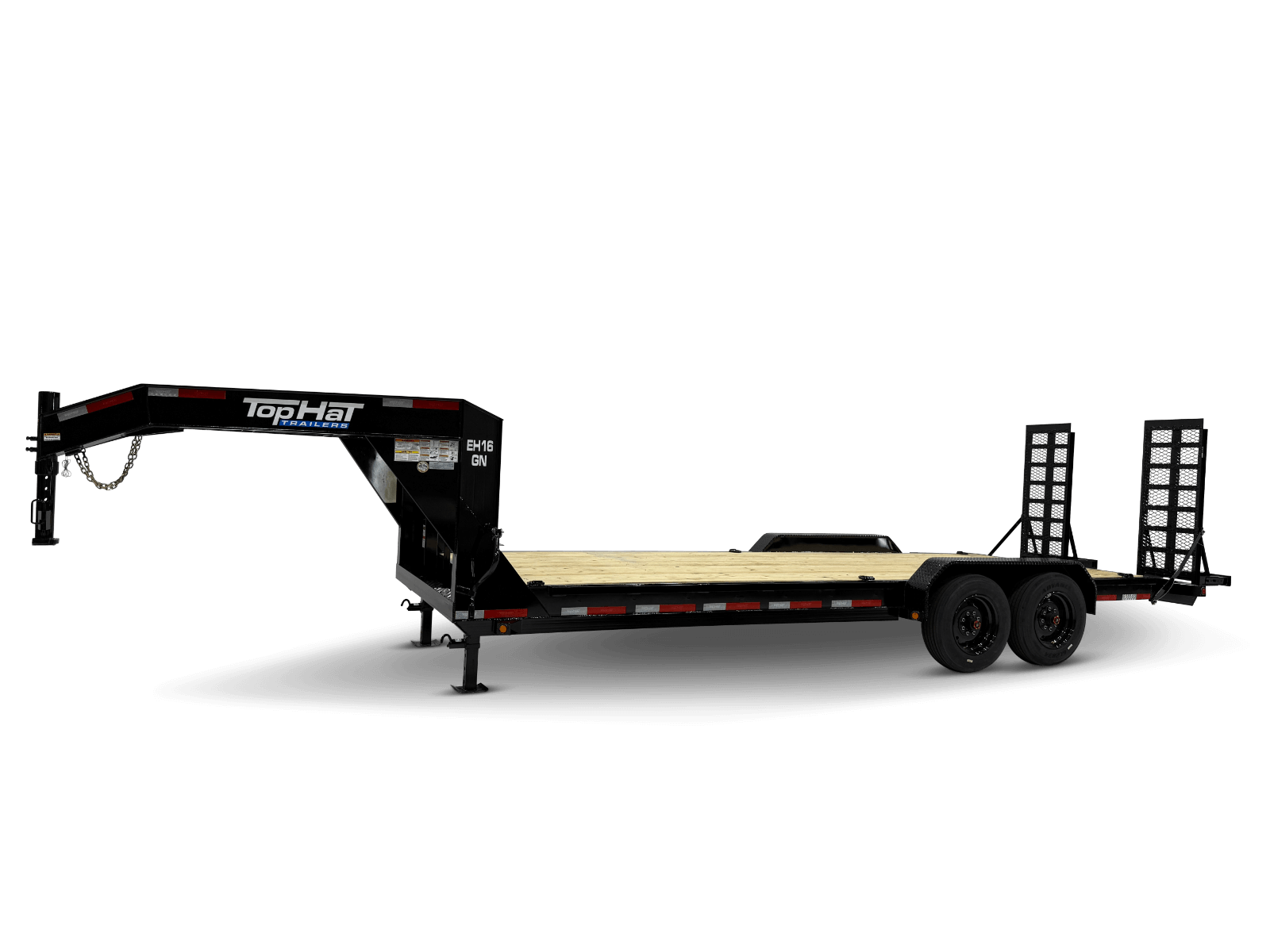

Equipment Hauler Gooseneck 16k

Product Details

Standard Equipment

• ST215/75R/17.5 LRH Tires on 8-Hole
• 8000# Dexter Oil Bath 1/2 Cambered Axles w/5/8" Lug Studs
• Electric Brake on 2-Axles w/2 1/4" Brake Pads
• 2 5/16" Round Adjustable Coupler
• Dual 10000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Suspension: Slipper Spring
• DOT Reflective Tape
• Sealed Flush Mount LED Lights w/Wiring Harness
• Spare Rack
• Color: Stock

Frame Structure

• Frame: 8" Channel Thru 24'
• Frame: 10" Channel on 26-32'
• Neck & Risers: 10"x12# I-Beam
• 4" Channel Truss from Fender to Front
• Crossmembers: 3" Channel 16" OC
• Stake Pockets w/3/8x2 Rubrail
• 5/8" D-Rings (6)
• 2' Treadplate Dovetail
• Flush Floor

Options

• Spare 215/75R/17.5 LRH on 8-Hole Black Mod
• Dual 10000# Drop Leg Jacks
• Toolbox Between Risers (Requires Dual Jacks)
• Weld-on D-Rings 5/8" (Each)
• HD 3/16" Drive Over Fenders
• 3" Square Tube Toprail (Side Option)
• Fork Rack (2-6" Channel tubes set at 46" Outside. Driver side)
• Fork Rack Tubing & dimensions can be custom w/additional fee.
• *5' Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
• Rear Stabalizer Jack (5K Top Wind Pipe Mount)
• 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
• **3' Self Cleaning Cleated Dovetail & 3' Mini Jumbo Spring Assist Ramps (Must be 20' or longer)
• 5' XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
• Above Ramp is 24" Wide Covered w/Expanded Metal
• 3-4' Dovetail ILO 2' Dovetail
• 2' Self Cleaning Cleated Dovetail ILO 2' Treadplate Dovetail
• *Rear Slide-N Ramps on 16' will be 4 1/2'. Rear Slides NA on 12-14'.
• **Jumbo Ramps NA on lengths less than 20'

Model Table
