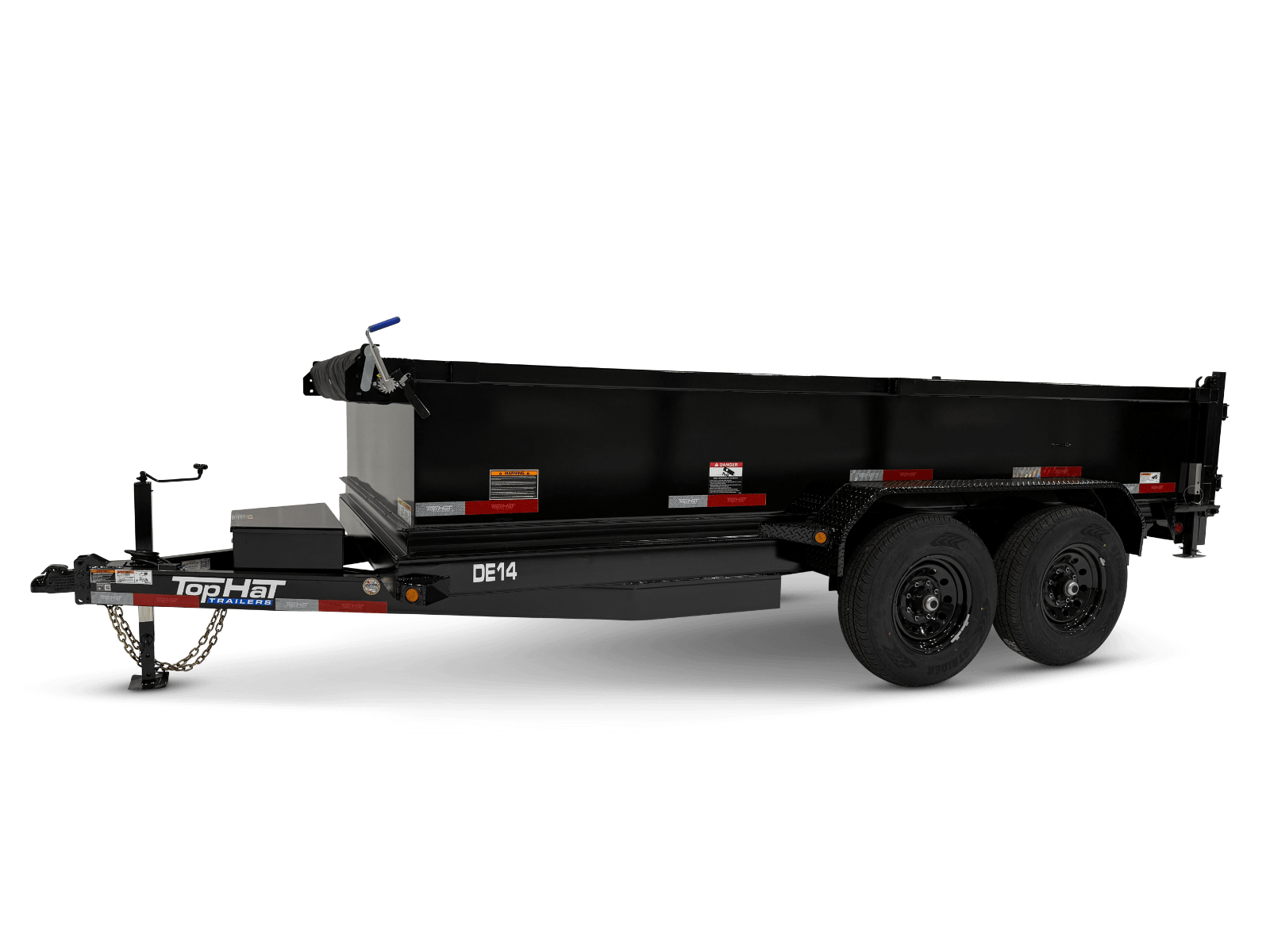

Channel Frame Econo Dump 14k

Product Details

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole
• 2-7000# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" DEMCO Easy Latch Adjustable 5/Position Coupler
• 7000# Drop Leg Jack
• HD Diamond Plate Fender (Double Broke)
• Width: 83" Inside Box
• Break Away Unit w/Charger
• DOT Reflective Tape
• Primed & Painted Underside
• Dual Action Swing Out Doors/1 Piece Spreader Gate
• Slide-N Ramp 6' Channel
• Spare Rack
• Sealed Flush Mount LED Lights
• Wiring Harness
• Lockable Battery/Pump Box
• Crank Style Roll Tarp
• Rear Stabalizer Stands
• Color: Black Only

Options

• Spare ST235/80R/16 LRE on 8-Hole
• Solar Battery Charger
• Economy Production model. No Other Sizes or Options Available

• Frame: 6" Channel
• Tongue: 6" Channel
• Sides: 24" Tall 10 GA Sheet Metal w/Toprail
• Floor: 10 GA Sheet Metal
• Toprail: Rigid 3x2x7GA Rectangular Tubing
• Dump Body Frame: 4" Channel
• Crossmembers: 3" Channel 16" OC

• 516 Scissor Hoist
• Power Up/Power Down/Gravity Down
• Control: Pistol Grip w/10' Cord
• Safety Prop
