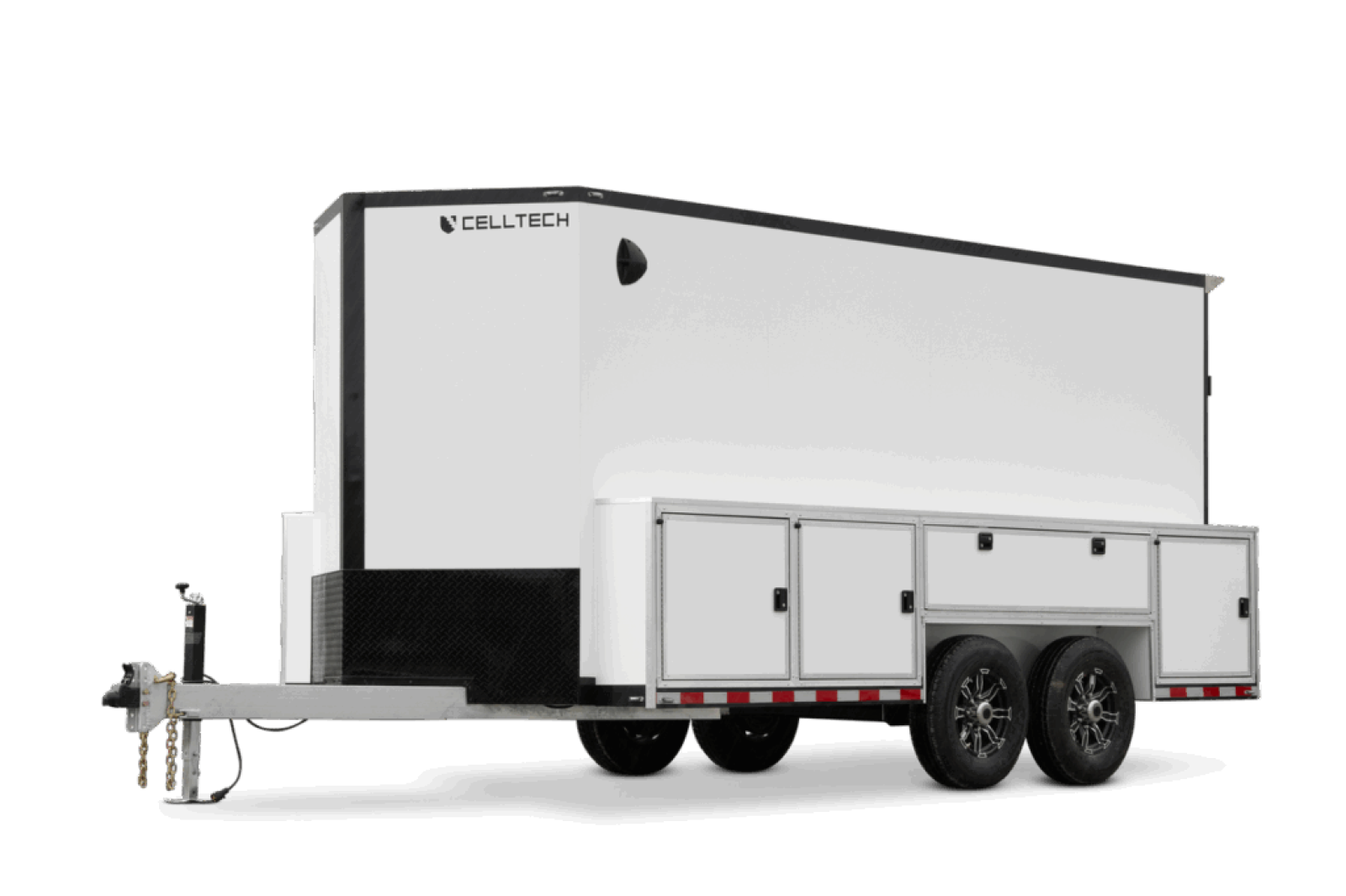

CellTech Service Trailer

Trailers - Trailers Enclosed

Print

CellTech Service Trailer

Trailers Enclosed

Brand: Celltech
Inventory Status: Manufacturer Inventory or Available to Order

Request More Info

Product Details

Construction & Frame

Galvanized Frame -Backed by a 10-Year Manufacturer Structural Warranty (Painted Frame 5-Year)
4″ Steel Tube Main Frame (Double Tube) & 16″ On-Center Crossmembers
HD Drop Leg Jack
2 5/16″ Coupler

Standard Accessories

Interior & Exterior
Electric Brakes on Both Axles
Flow-Through Ventilation System
Wall-Mounted Vertical E-Tracks (8 total)
Roof-Mounted Vertical E-Tracks (2 total)
All LED Lighting – Interior & Exterior
7-Way Bergman Electrical Plug
LED Breakaway Safety Kit
Heavy-Duty Ramp Door with ramp handle & bar locks
36″ Side Access Door with flush lock & bar lock
Anti-Skid Coated Flooring & Ramp

Color Options

Available Colors
White
Satin Grey
Glossy Black
Custom Trailer Wraps
Available in any color
Add graphics for a unique look!
Trim Packages
Blackout

TIRES, WHEELS & AXLE

Tire Upgrades
Standard→ Any Size
Wheel Upgrades
Steel → Aluminum
Axle Upgrades
5.2k# Spring → Torsion
7k# Torsion → Spring

EXTERIOR OPTIONS

Ladder
Roof Racks (per section)
Triple Tongue – 7′ wide
Ramp Flap – Aluminum
Transition Flap – Aluminum
Side Doorstep (interior)
RV Side Doorstep (exterior)
Rear Step (full width)
Triple Tongue 7′ wide
Scissor Stabilizer Jacks (2.5k# each)
Extra Rear Door Hinge
Interior Height – 7′-6″
Interior Height – 8′
Insulated Floor

INTERIOR OPTIONS

Storage
Work Bench in V-Nose
Upper Cabinet in V-Nose
Lower Cabinet in V-Nose
Decking Beam
Desk (2′ x 3′)
Partition Wall
Shelves
Doors, Windows, Walls
Additional Door
Window in Side Door
Window (30″ x 30″)
Concession Door
Interior Insulation
Cargo Management
Extra Vertical E-Track (wall, roof)
Horizontal E-Track (wall, floor)
D-Rings

ELECTRICAL OPTIONS

Packages
30 amp package
50 amp package
15 BTU AC with Heater
Extra Options 110V
Interior 4′ LED Light
Light Switch
Receptacles
Extra Options 12V
Interior 2′ LED Light
Light Switch
Marker Light
Loading Light (1,500 Lumen)

REAR DOOR OPTIONS

Barn Door
Ramp Door
HD Ramp Door
Beaver Tail (available only on 8.5′ wide trailers over 18′)
Ramp with Safe Assist (cable-free)
Extra HD Ramp with Safe Assist (cable-free)
Roll-Up Door

Model Table

Model
Overall Dimensions (LxH)
Ramp Width x Height
Weight
7x14x7 Enclosed Cargo Trailer
14' x 6'9" x 7'2"
18' x 8'10"
6'1" x 6'10"
2,470 lbs
7x16x7 Enclosed Cargo Trailer
16' x 6'9" x 7'2"
21' x 8'10"
6'1" x 6'10"
2,650 lbs
8.5x16x7 Enclosed Cargo Trailer
6' x 8'3" x 7'2"
22' x 9'
7'6" x 6'10"
3,200 lbs
8.5x18x7 Enclosed Cargo Trailer
18’ x8’3” x 7’2”
24 x 9’
7’6” x 6’10”
3,500 lbs
8.5x20x7 Enclosed Cargo Trailer
20' x 8'3" x 7'2"
26' x 9'
7'6" x 6'10"
3,750 lbs
8.5x22x7 Enclosed Cargo Trailer
22’ x8’3” x 7’2”
28 x 9’
7’6” x 6’10”
4,000 lbs
8.5x24x7 Enclosed Cargo Trailer
24' x 8'3" x 7'2"
30' x 9'
7'6" x 6'10"
4,200 lbs
14′ CellTech Service Trailer
14' x 6'9" x 7'2"
20' x 8'10"
6'1" x 6'10"
2,500 lbs
16′ CellTech Service Trailer
16' x 6'9" x 7'2"
22' x 8'10"
6'1" x 6'10"
2,500 lbs
