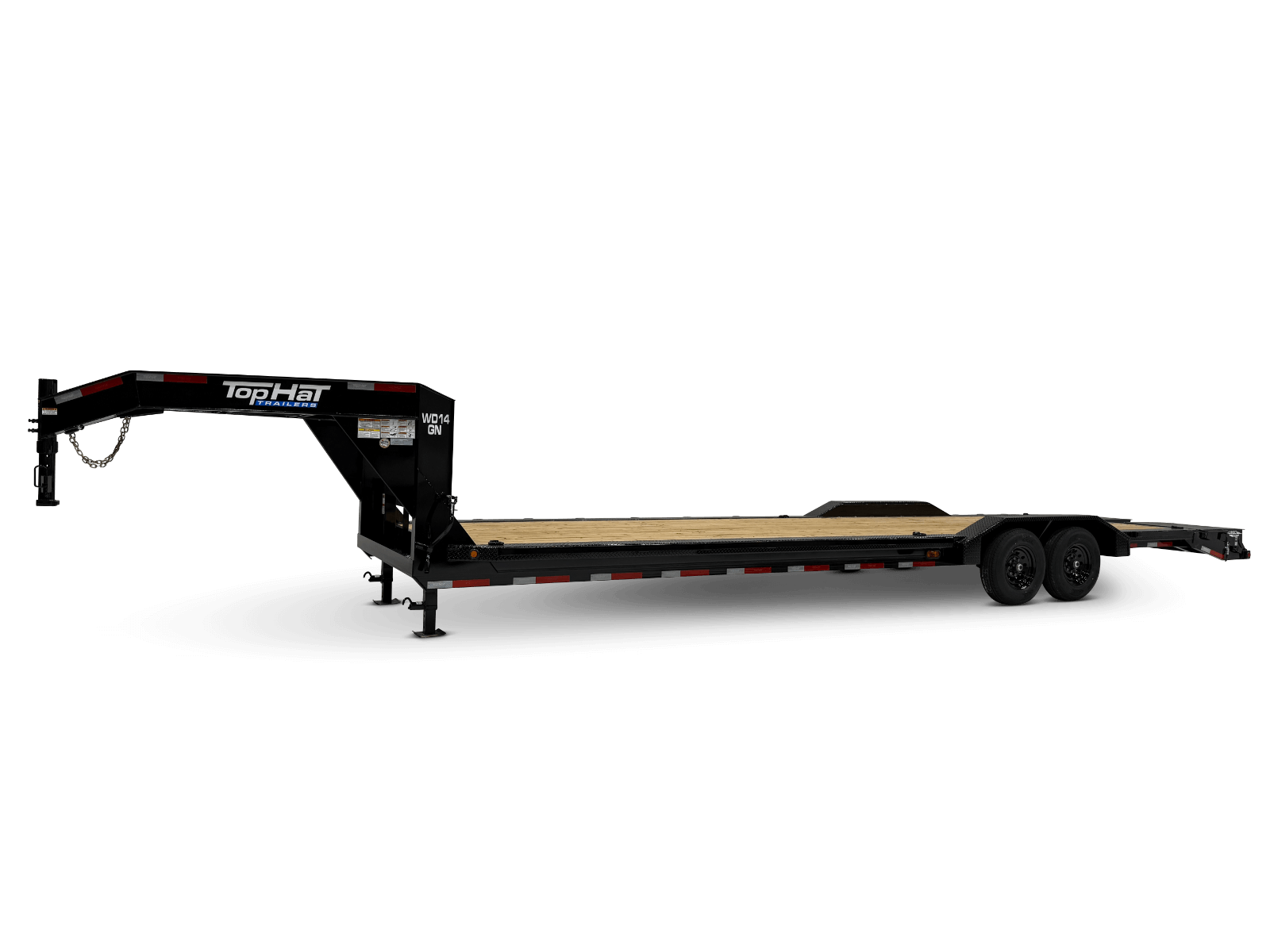

Wide Drive Over Gooseneck 14k

Product Details

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole
• 2-7000# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" Round Adjustable Coupler
• Dual 10000# Drop Leg Jacks
• HD Diamond Plate Drive Over Fenders
• Treated Pine Floor
• Break Away Unit w/Charger
• Sealed Flush Mount LED Lights w/Wiring Harness
• Stake Pockets & Rubrail
• Spare Rack
• Color: Stock

Frame Structure

• Frame: 6" Channel on 16-24'
• Frame: 8" Channel on 26-32'
• Neck & Risers: 10"x12# I-Beam
• 4" Channel Truss from Fender to Front
• Crossmembers: 3" Channel 16" OC
• Flush Floor w/Side Extensions to 102"
• 83" Between Drive Over Fenders
• Stake Pockets w/3/8x2 Rubrail
• 2' Treadplate Dovetail
• 5/8" D-Rings (6)

Options

• Ramps & Dovetail (Length of trailer may limit certain options)
• Spare ST235/80R/16 LRE on 8-Hole
• Toolbox Between Risers
• Tread Plate Steel Floor
• Weld-on D-Rings 5/8" (Each)
• *5' Rear Slide Channel Ramps (Must Purchase 2 Rear Stabalizer Jacks)
• Rear Stabalizer Jack (5K Top Wind Pipe Mount)
• 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
• 5' XM Fold Up Channel Ramp w/Adjustable Knees & Spring Assist
• Above Ramp is 24" Wide Covered w/Expanded Metal
• **3' Self Cleaning Cleated Dovetail & 3' Mini Jumbo Spring Assist Ramps (Must be 20' or longer)
• 3-4' Dovetail ILO 2' Dovetail
• 2' Self Cleaning Cleated Dovetail ILO 2' Treadplate Dovetail
• *Rear Slide-N Ramps on 16' will be 4 1/2'. Rear Slides NA on 12-14'.
• **Jumbo Ramps NA on lengths less than 20'
