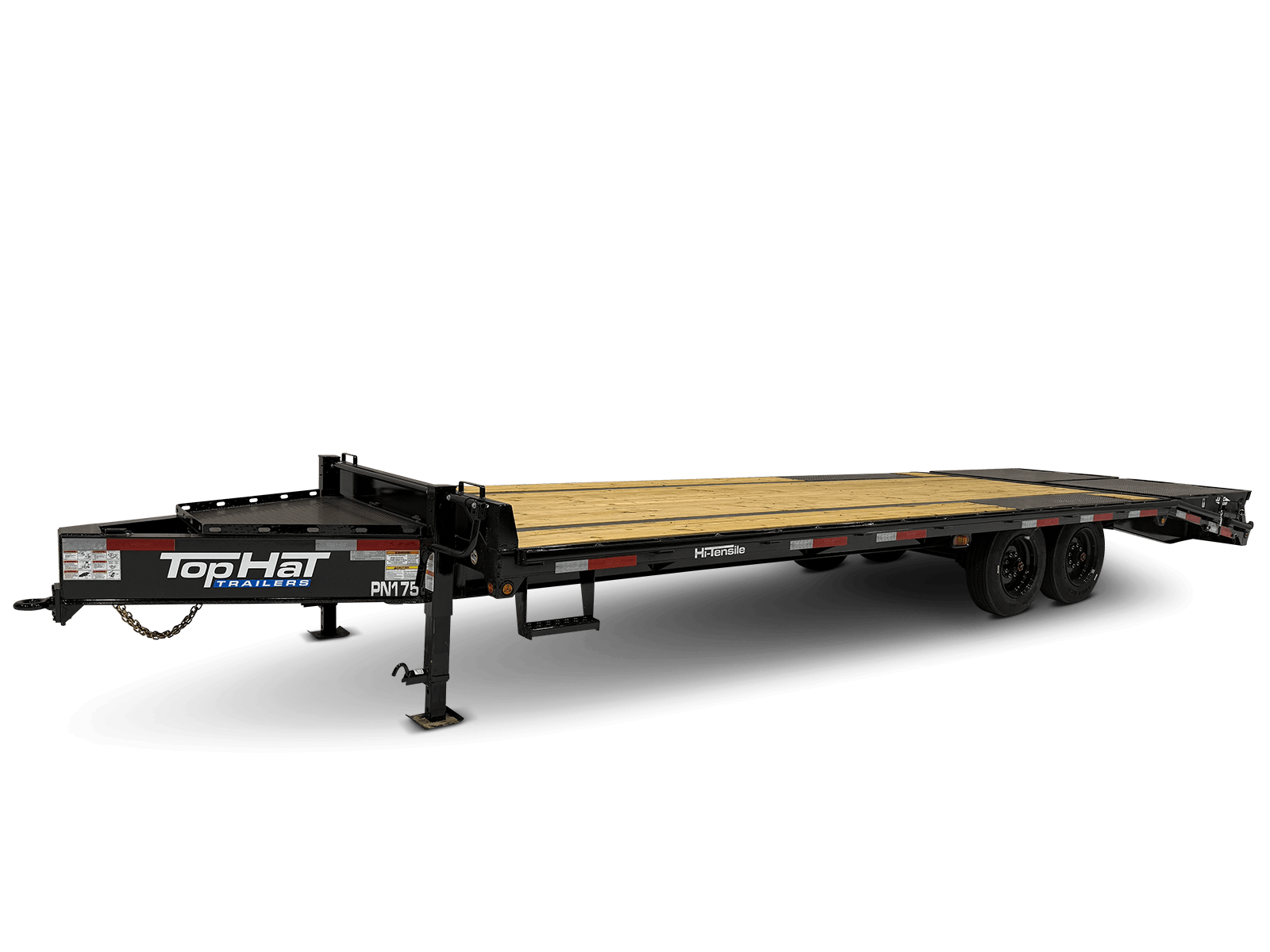

Pintle Lo Profile Flatbed 16k

Product Details

Standard Equipment

• ST215/75R/17.5 LRH Tires on 8-Hole
• 2-8000# Dexter Oil Bath Electric Brake Axles
• 2 1/4" Brake Pads
• 3" ID Adjustable Pintle Ring
• Dual 10000# Drop Leg Jacks
• Treated Pine Floor
• Break Away Unit w/Charger
• Spare Tire Rack (Spare Tire Optional)
• Toolbx/Spare Holder in Tongue
• Wiring Harness w/Sealed LED Lights
• Driver & Curb Side Steps
• DOT Reflective Tape
• Color: Black

Frame Structure

• Frame: 12"x14# I-Beam
• Tongue: Integrated w/Frame
• Crossmembers: 3" Channel 16" OC Thru Frame
• Side Rails: 5" Channel
• 3/8x2 Flat Rubrail
• Stake Pockets 24" OC
• Pipe Spools Between Each Stake Pocket
• Frame to Crossmember Gussets
• Low Profile (Crossmembers Thru Frame)
• Dovetail w/Fold Over Spring Assist Ramps
• Deck Height: 33"
• Frame & Tongue: 12"x16# I-Beam on 32' & longer

Options

• 2 5/16 DEMCO Easy Latch Adjustable Coupler ILO Pintle Ring
• Dual 2-Speed Jacks
• Jumbo Ramps
• Spare ST215/75R/17.5 LRH on 8-Hole
• 1" D-Rings (Per Ring)
• Toolbox 15"x15"x36" JI

Model Table
