Low Profile Gooseneck Dump 14k

Trailers - Trailers Hydraulic Dump / Roll Off

Print

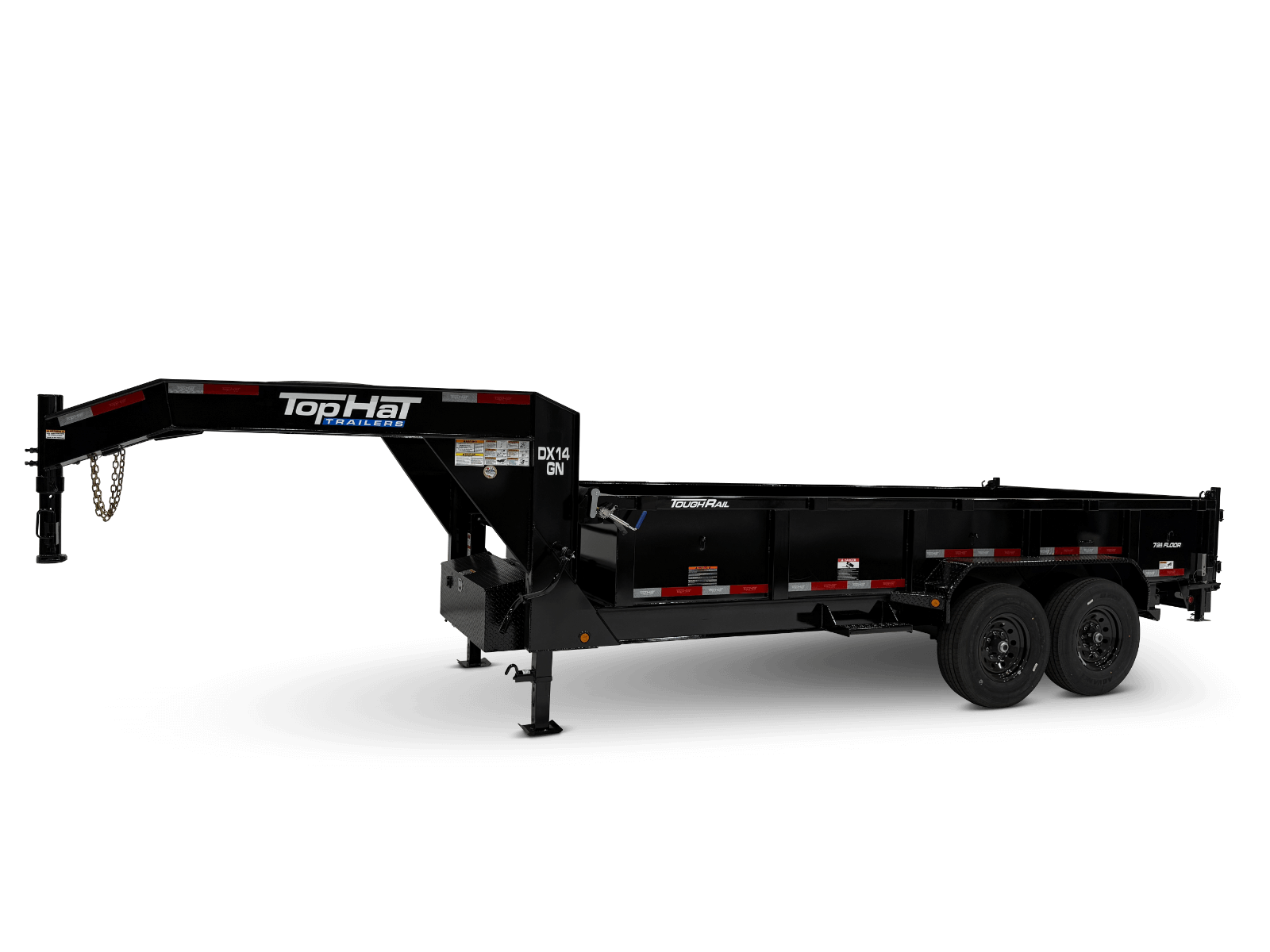

Low Profile Gooseneck Dump 14k

Trailers Hydraulic Dump / Roll Off

Brand: Top Hat
Inventory Status: Manufacturer Inventory or Available to Order

Request More Info

Product Details

Models & Sizes

14x83" DX14GN - 14k GVWR

16x83" DX14GN - 14k GVWR

Standard Equipment

ST235/80R/16 LRE Tires on 8-Hole
2-7000# Dexter Axles w/Electric Brakes
Axles 1/2 Cambered w/EZ Lube Hubs
2 5/16" Round Adjustable Coupler
Dual 10000# Drop Leg Jacks
HD Diamond Plate Fender (Double Broke)
Width: 83" Inside Box
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Slide-N Ramp 6' Channel
5/8" D-Rings in Box (4)
Spare Rack
Sealed Flush Mount LED Lights
Side Step (Driver Side)
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp & Tie Downs
Rear Stabilizer Stands
Color: Black

Frame Structure

Frame: 8" I-Beam
Neck & Risers: 10" I-Beam
Sides: 24" Tall 10 GA Sheet Metal w/Toprail
Floor: 7 GA Sheet Metal
Toprail: Rigid 3x2x7GA Rectangular Tubing
Uprights: Formed Channel
Dump Body Frame: 6" Channel
Crossmembers: 3" Channel 16" OC

Options

DX Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Ground Level Crank Kit For Spring Loaded Long Arm Retractable Tarp (3-4' Sides Only)
Motorized Spring Loaded Long Arm Retractable Tarp ILO Standard Tarp
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST235/80R/16 LRE on 8-Hole
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
Telescopic Hoist ILO Scissor Hoist
Solar Battery Charger
Jumbo Step (40" Replaces 18" Side Step)

Dump Components

520 Scissor Hoist 0n 14'-16'
Power Up/Power Down/Gravity Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger

High Sides

3' Tall Sheet Metal Sides
4' Tall Sheet Metal Sides
