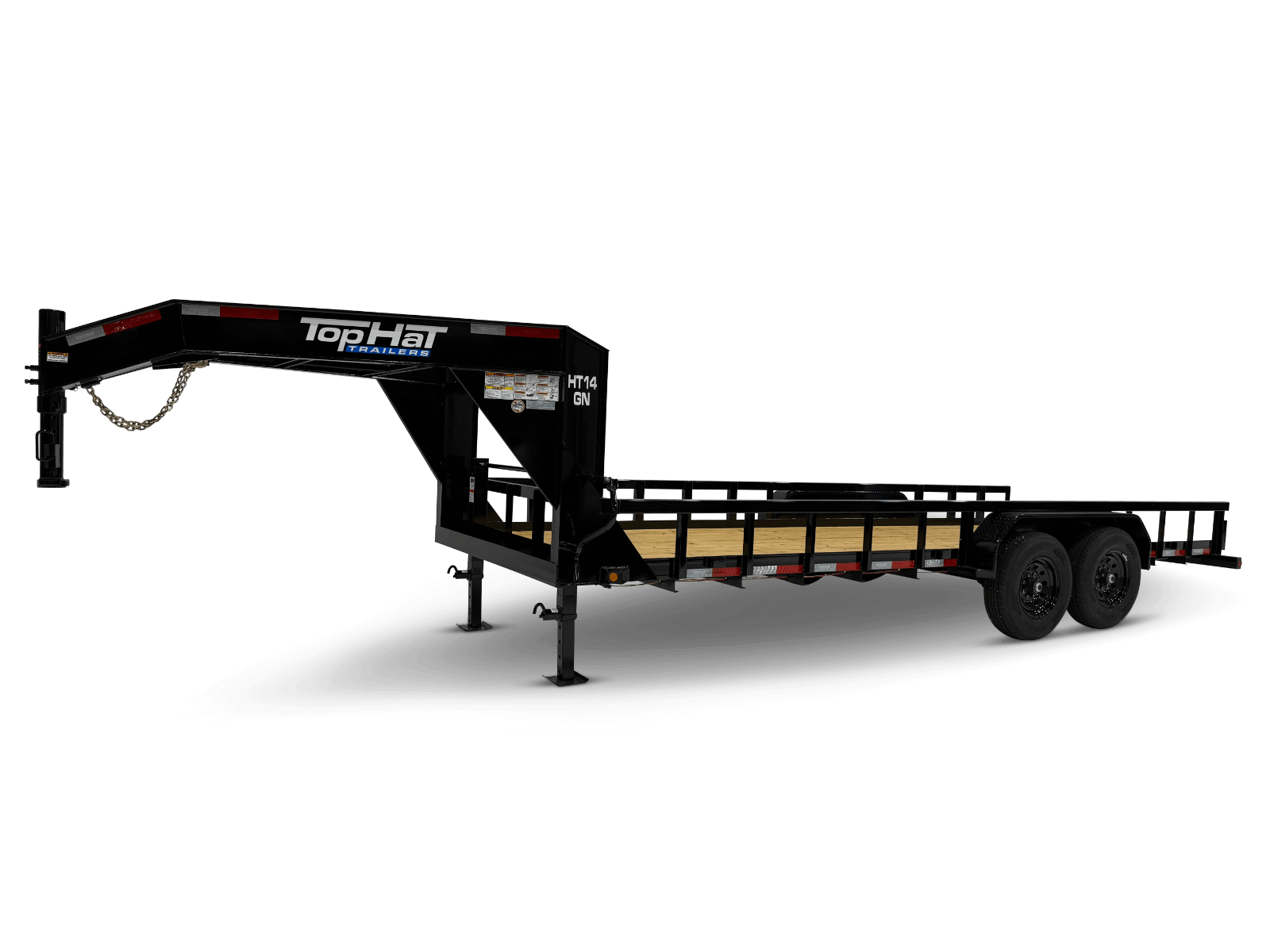

Heavy Hauler Utility Gooseneck 14K

Product Details

Standard Equipment

• ST235/80R/16 LRE Tires on 8-Hole
• 2-7000# Dexter Axles w/Electric Brakes
• Axles 1/2 Cambered w/EZ Lube Hubs
• 2 5/16" Round Adjustable
• Dual 10000# Drop Leg Jacks
• HD Diamond Plate Fender (Double Broke)
• Treated Pine Floor
• Break Away Unit w/Charger
• Suspension: Slipper Spring
• DOT Reflective Tape
• Spare Rack
• Flush Mount Sealed LED Lights in Rear Tailboard
• Color: Stock

Frame Structure

• Frame: 5x3x1/4 on 16' - 20'
• Frame: 6x4x5/16 on 22' - 24'
• Toprail: 3" Square Tube
• Crossmembers: 3" Channel
• Neck & Risers: 10"x12# I-Beam
• Uprights: 3x2x3/16

Options

• Spare ST235/80R/16 LRE on 8-Hole
• Toolbox Between Risers

Ramps/ Tailgates

• 5' Slide-N Channel Ramp
• 5' Fold-up Channel Ramp w/Adjustable Knees & Spring Assist
• 5' XM Fold Up Channel Ramp w/Knees-Adjustable Legs & Spring Assist
• Tractor Rampgate (Split) w/ Adjustable Knees & Coil Spring Assist Each Gate
• 2' Diamond Plate Dovetail (No Tailgate)

MORE CUSTOM OPTIONS AVAILABLE

Model Table
