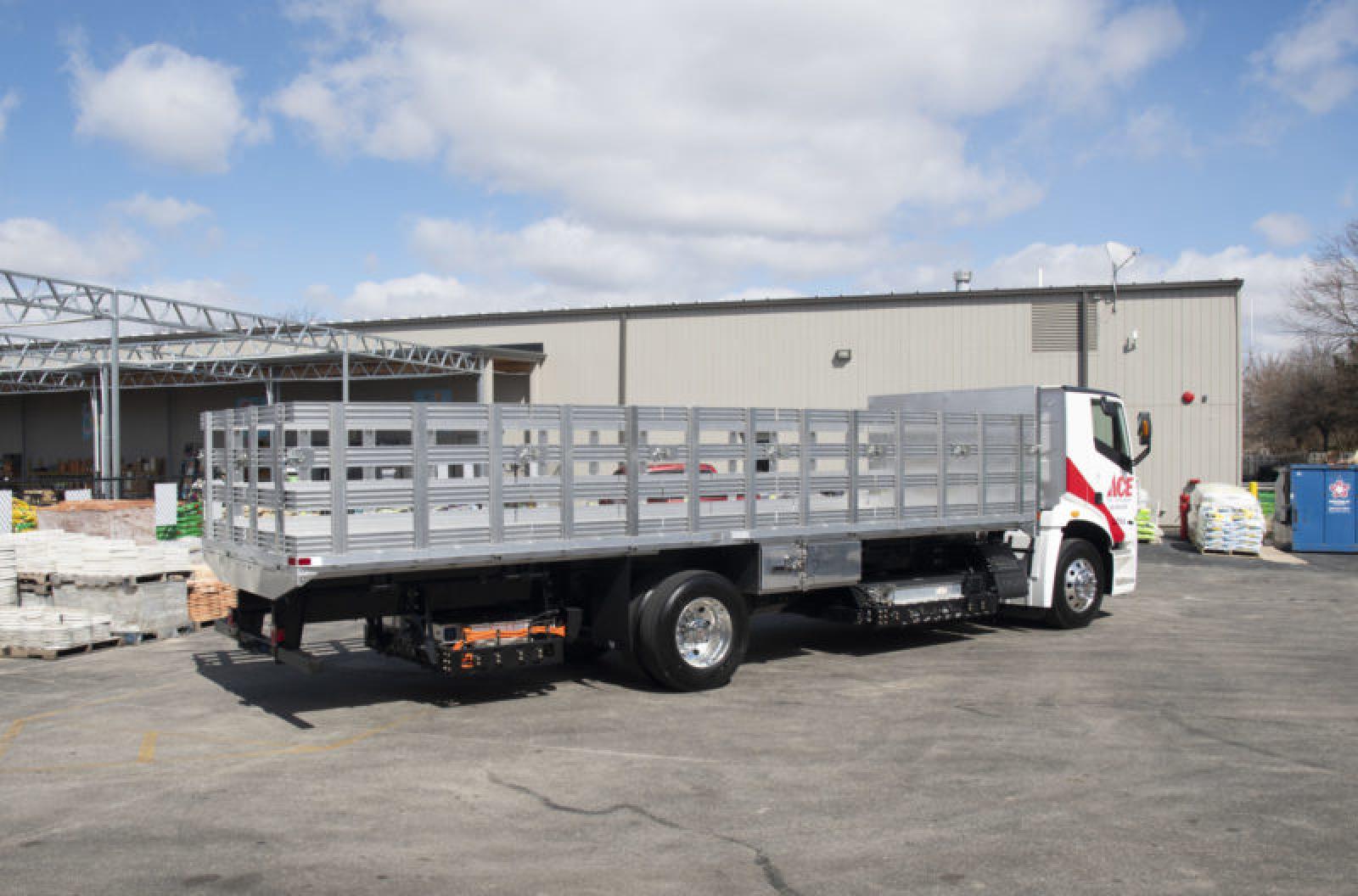

Take uncertainty out of the equation with CM’s AL PL model: Strong and durable yet lightweight and efficient, this aluminum platform body is reliable through-and-through.
Welded bulkhead (41” off deck) with plasma cut “easy view” window grill
Stronger, more durable and integrated into the bed.
Heavy-duty welded bulkhead
Provides extra strength and security. It has less flexibility in the deck, making your hauls more secure.
4″ structural steel channel frame rails
Because we don’t use roll-formed runners, our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.
3” x 3/8” Rub rail with stake pockets
These accommodate your straps and give you multiple tie-down points for your hauling jobs.
Extruded aluminum floor
CM Truck Beds uses an extruded aluminum decking system, which is stronger than treadplate and withstands the harshest weather conditions, preventing the type of corrosion experienced on many steel bodies.
1/8” steel formed sides and rear
CM provides stronger, more durable, and thicker formed sides and rear than the competition.
Modular sealed wiring harness
Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.
3” steel roll-formed 3/16” channel crossmembers on 12” centers
These are the toughest and most durable work truck subframes.
LED recessed rubber mounted clearance lights
CM’s lights are brighter and use less power than conventional incandescent lights, so your rubber mounted clearance lights will be easily seen and recognized.
LED DOT required lighting (clearance and marker lights)
When you are backing up, turning, or hitting your brakes along the road, our LED lights will make your truck bed stand out more.
Specs and Features
Lengths 12', 14', 16', 18'
Headache Rack Punched Aluminum Headache Rack
Deck Extruded Aluminum Floor
Frame Rails 4" Aluminum Channel
Crossmembers 3" Aluminum Channel Crossmembers
Rear Skirt One Piece Aluminum
GN Hitch N/A
BP Hitch ICC optional
Side Rails 3/8" X 2" Aluminum Extrusion with Stake Pockets
