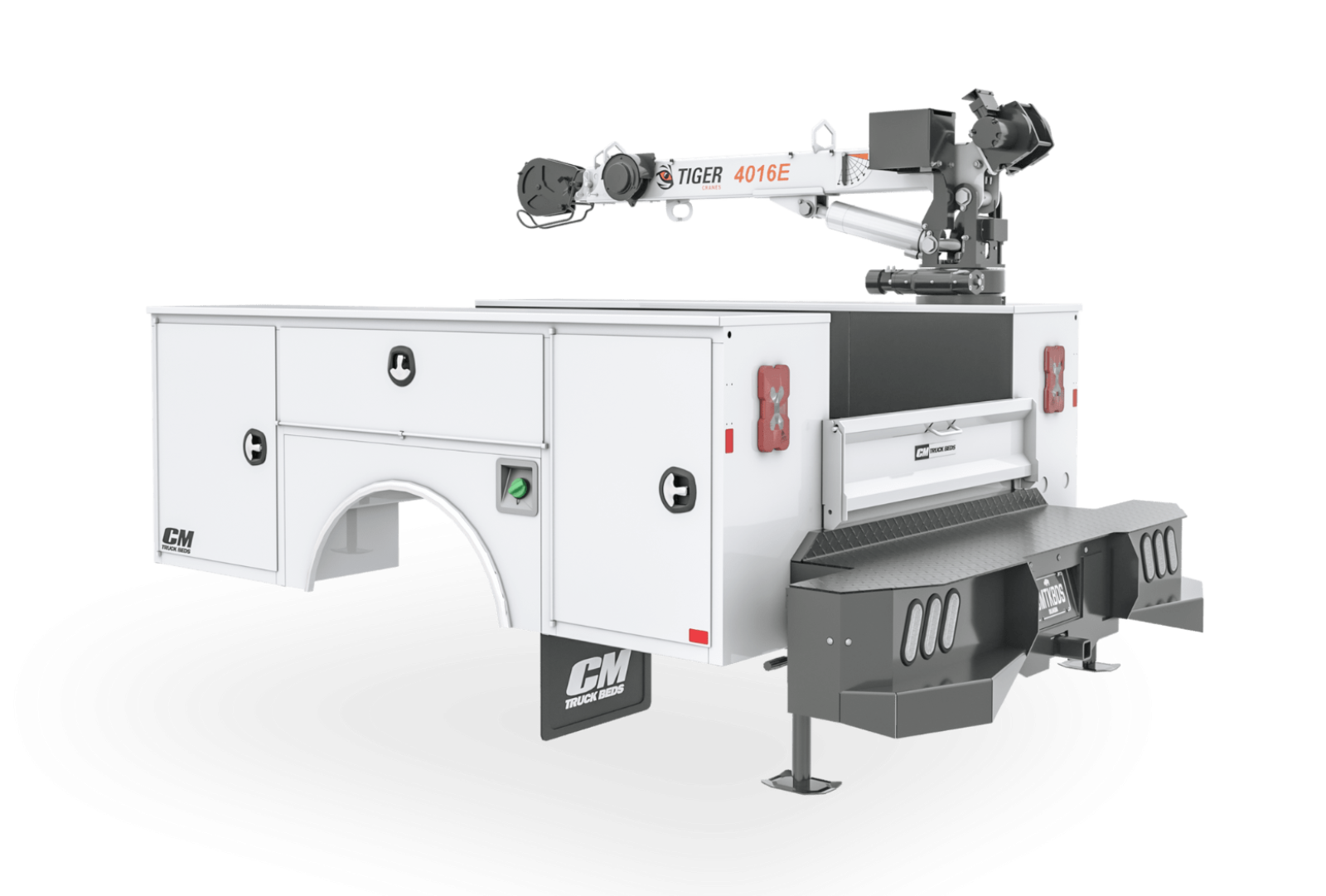

CM Truck Beds is proud to set the standard with an all-in-one solution for crane trucks! Hard workers everywhere can choose from one of our four crane options from Tiger and Auto Crane, as well as a workbench bumper with built-in outriggers. receiver hitch to complete your crane truck. With 3,200 to 6,500 lb. crane offerings, these cranes expedite your upfits and are trusted by seasoned professionals in the crane body industry. CM Truck Beds delivers proven performance and reliability once again!
Our SBC Crane Body is built with the most rugged materials to withstand the grind and tear that you will put it through in the field, prolonging the life of your work truck.
T-Handle Compression 3-point latches
Count on CM to keep your valuable tools safe, secure and protected from the elements. Our latches seal tightly, so you never have to worry about them opening in transit or letting in damaging moisture.
Automotive D-bulb weather stripping
Weatherstripping is an important feature of any body. Our doors are sealed with D-bulb weatherstripping to ensure that no moisture gains entry to the interior of our toolboxes.
Multi-panel doors with internal reinforcements
CM Truck Bodies uses multi-piece doors, reinforced to prevent flexing and sagging. Our doors will shut, seal and perform better than any door in the market.
Heavy-duty rear tailgate
When you haul materials on our decks, you can rest assured that our tailgates will be tough enough to keep the material inside of the deck. They are rated at over 400 lbs., supporting even the largest operators to gain access into our bodies.
Gas cylinder style door holders
We don’t use simple springs, we use the finest gas shocks on the market today. They provide strength that allows our doors to open smoothly and stay open so you can use your truck body for what its intended for…work!
PAINT
Heavy-Duty 2-Stage Wet Coat Finish
CM Truck Beds coats our service and crane body products with Low VOC Acrylic Polyurethane paint. We cover every crevice and corner, providing long-lasting protection and a best-in-class finish and shine!
Heavy-Duty Wet Coat Box Interior
After careful preparation we apply both a primer and top coat paint, even in the interior of your toolboxes. This ensures that when your tools shift in transit, they won’t end up with rust and corrosion.
Warranty
4 Year / 48,000 mile warranty
Some companies say they stand behind their products, we put it in writing. We offer the longest warranty for the body, offering a 48-month warranty. We recognize what an investment a service body can be, and we want you to know that were with you today, and four years from now.
Specs and Features
Lengths 98”, 110”, 134”
Headache Rack Optional
Deck 12 Gauge Galvanneal Steel with Spray on Bed Liner
Frame Rails 2” x 6” A500 Structural Tubing (110”); 3” x 6” A500 Structural Tubing (134”)
Crossmembers 2” x 6” A500 Structural Tubing (110”); 3” x 6” A500 Structural Tubing (134”)
Bumper Optional Workbench Bumper with Built-In Outriggers
